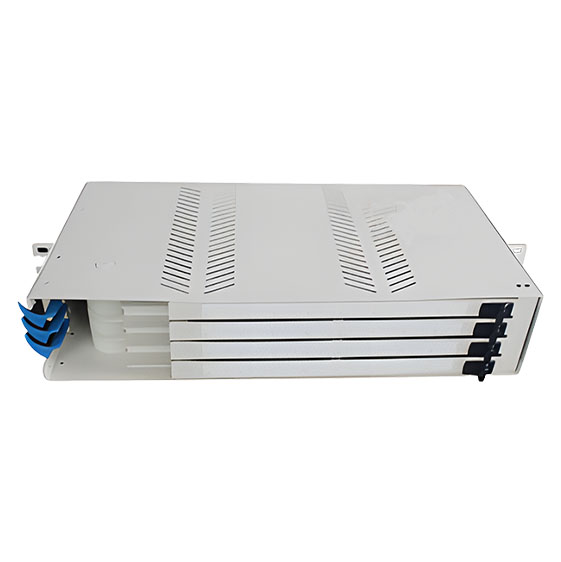

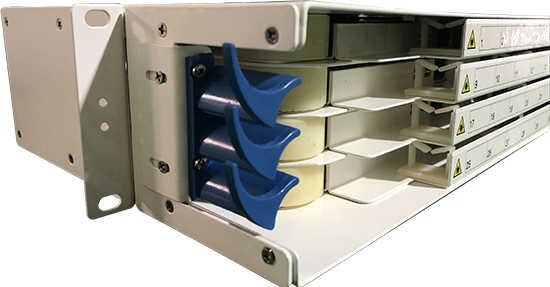

19″ 144×Splicings Rack Mounted ODF, RAL 7035 Light Grey Colored, Stacking Panels Design, Rotated Front Cover
The Rack Mounted ODF accommodates up to 144Cores (direct splicing, in LC mode) in 3×U space, available for 19”/21”/23” racks.

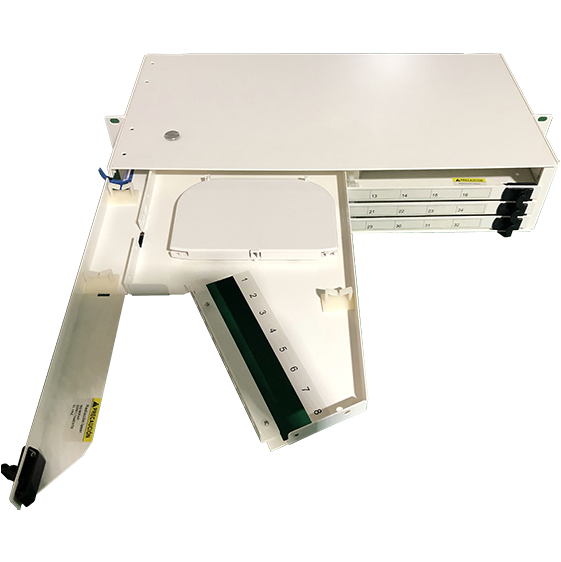

Frontal rotate cover style, fits with FC, SC simplex adapters and LC duplex adapters.
Options including (in LC mode),
-in 1×U, max. 48cores
-in 2×U, max. 96cores
-in 4×U, max. 144cores

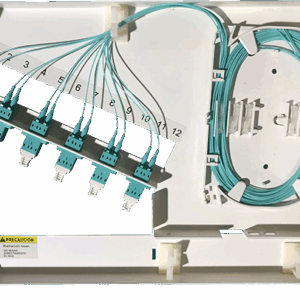

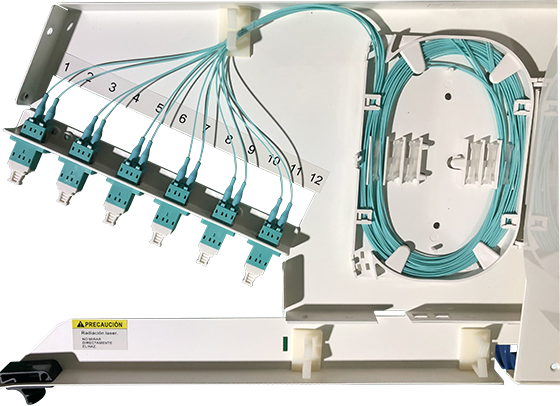

Splicing heat shrink tubes included, patch cords/pigtails/adapters can be pre-installed upon request
Technical Data
| Height | Depth(mm) | Width | Capacity (Splicing & patching) | ||
| FC | SC | LC | |||
| 1U | 240 | 19’’/21’’/23’’ | 24 | 24 | 48 |
| 2U | 240 | 19’’/21’’/23’’ | 48 | 48 | 96 |
| 3U | 240 | 19’’/21’’/23’’ | 72 | 72 | 144 |
