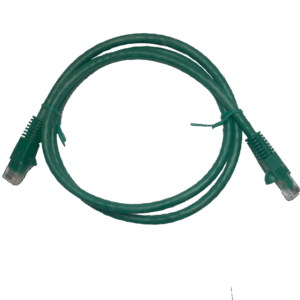

UTP ClassE Series, Cat.6 Unshielded Patch Cord, PVC & LSZH Sheathed
Features
- in compliance with cat.6 requirements and standards:
- ANSI/TIA/EIA 568.2-D
- ISO/IEC 11801 2nd Edition
- CENELEC EN 50173-1
- CENELEC EN 50288
- flame retardance according to IEC 60332-1-2
- RJ45 contacts 6/50μ inch gold plated over phosphor bronze
- molded snag proof boot
- RoHS compliant
Technical Data

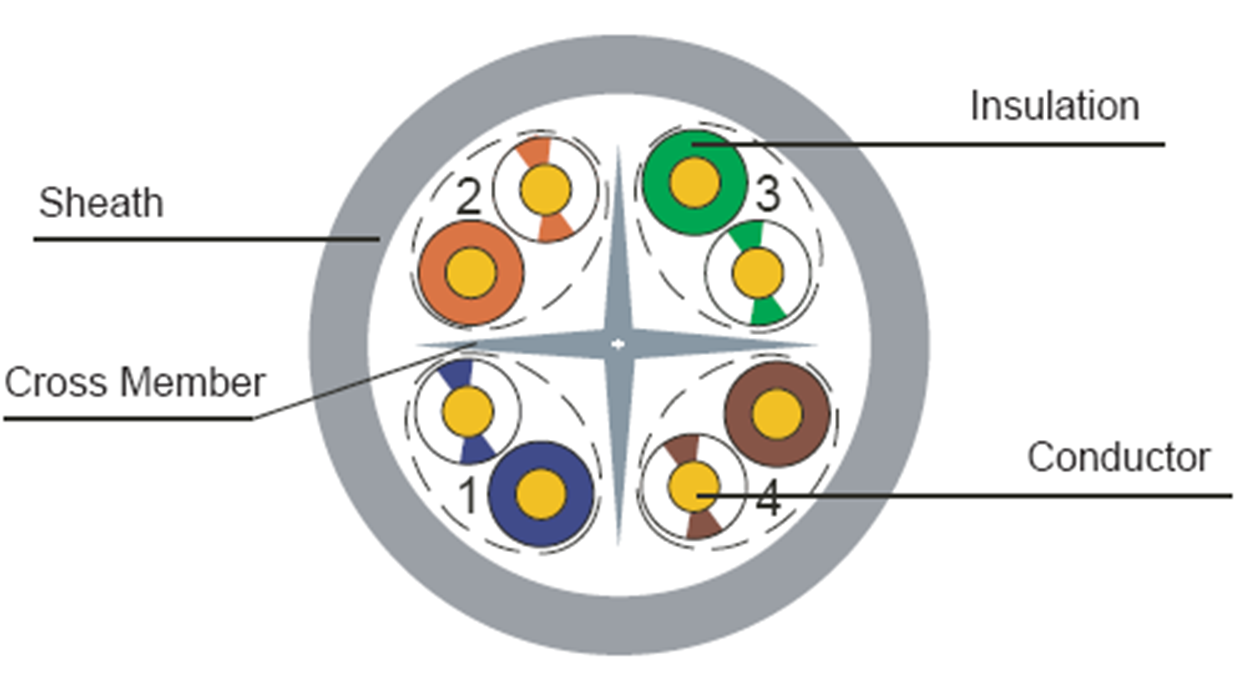

| Cat.6 Patch Cable | Conductor | Material / size | Bare Copper / 24 AWG |
| Insulation | Material / Dia. | HDPE/ 1.05 ± 0.06 mm | |
| Cross-member |
Yes |
||
| Sheath | Material / Dia. | PVC/ 6.4 ± 0.3 mm | |

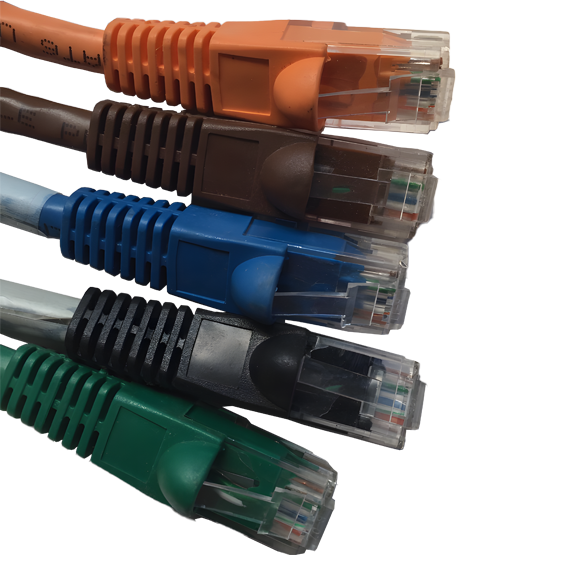

| RJ45 Cat.6 UTP Plug | Pins | Material | 6/50u Gold plated over phosphor bronze, 2 prongs |
| Type | 8P8C, Molding Type | ||
Wiring Method
T568B (optional T568A if requested in advance)
For Specification sheet and further info., please contact with us.
