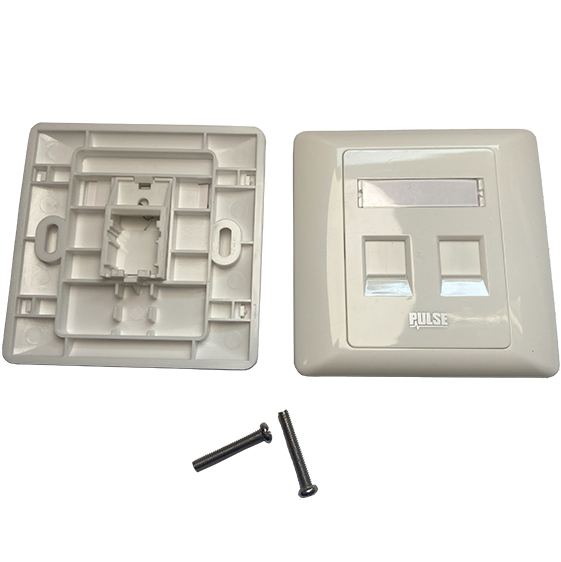

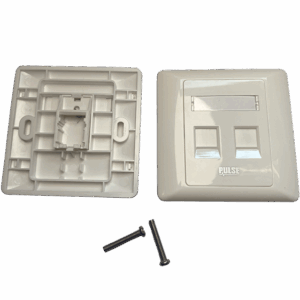

Faceplate Series, 86×86 Universal Type, White
1) Universal TypeFaceplate
Features of Faceplate
- secures to any surface, drywall, baseboard, and even modular furniture
- 100% compatible with standard wall (face) plates
- keystone jacks can be snapped in and out easily
- comes in models to accommodate 2 inserts and shuttered dust cover
- comes with hidden mounting screws and clear outlet ID labels
- apply UL-94V-0 high-impact, fire-retardant ABS resin
- RoHS complaint
Technical Data
| Item | Material or Feature |
| Face Plate Material | ABS |
| Face Plate Dimension | 86*86mm |
| Accessories: paper label, clear cover, plastic icon, screws | |

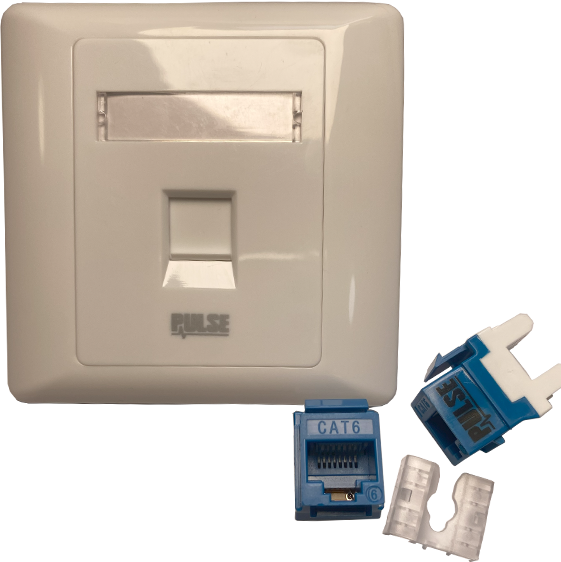

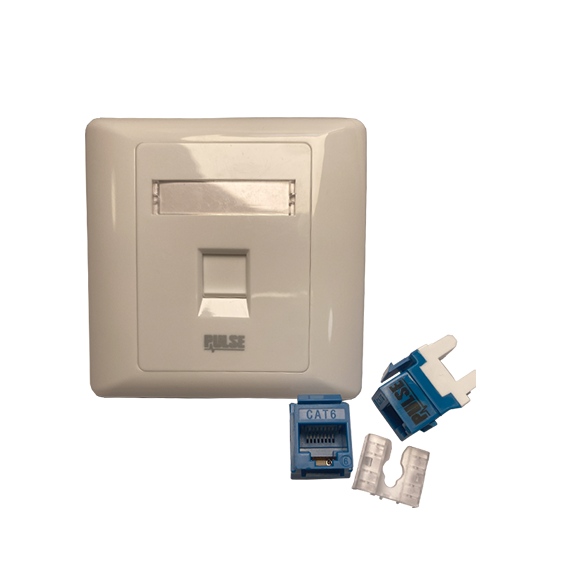

2) UTP ClassE Series, Cat.6 UTP Slim 180° Keystone Jack
Features of Keystone Jack
- ISO/IEC 11801:2010 & EN 50173 Class E, ANSI/TIA 568.2-D Cat.6 performances compliant
- 180° Dual type IDC, terminate with 110 or krone tools
- RoHS compliant
Technical Data
| IDC | Contacts | Nickel plated over phosphor bronze |
| Admissible Solid Wire | 0.4 mm (AWG26) – 0.65 mm (AWG22) | |
| Re-terminations | Min. 250s | |
| Jack | Housing | ABS, fire resistant |
| Contacts | 3u or 30u Gold plated | |
| Admissible Plugs | RJ45 unshielded | |
| Mating Cycles | Min. 750s |
For specification sheet and further info., please contact with us.
