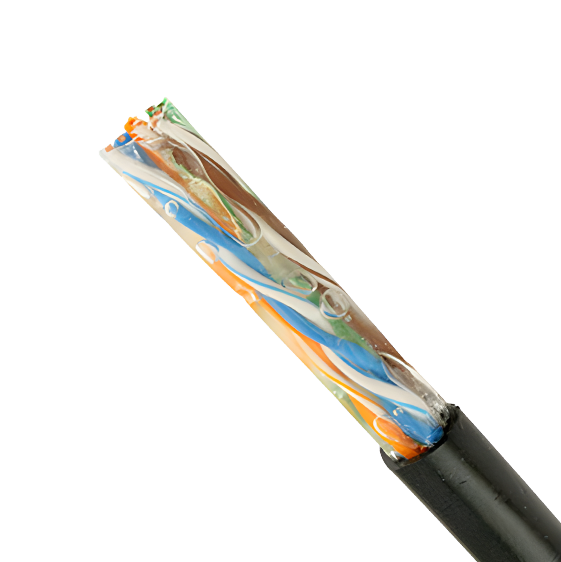

UTP Cat.6 Gel Filled Outdoor Data Cable, Water-proofed, 23AWG
The Cat.6 U/UTP 250MHz water-proofed outdoor cable is designed for campus cabling between buildings and also Outdoor Security System wiring. The cable fully complies with standards ISO/IEC 11801 2nd Ed. AM2 Class E,
EN50173-1:2011 Class E, as well as ANSI/TIA 568.2-D with significant headroom margins. Inside the gel filling grants the cable excellent water proof performance, also the anti-UV PE outer sheath guarantee the cable lifetime and reliable quality against robust environment.
Applications:
◎ Outside plant backbone cabling
◎ Security System wiring
◎ Door Access Control System
◎ 1G Ethernet
Standard Compliants:
◎ ANSI/TIA-568.2-D
◎ ISO/IEC 2nd Edition 11801 CLASS E
◎ CENELEC EN 50173-1
◎ CENELEC EN 50288-6-1, IEC 61156-5 for horizontal cable
◎ RoHS compliant
Technical Data
| Conductor | Material / Size | Bare Copper/23 AWG(0.550mm) |
| Insulation | Material | HDPE |
| Filling Jelly | Petroleum Jelly | |
| Sheath | Material | PE |
| Diameter | 7.2± 0.5 mm | |
| Operation Temperature | -40°C ~60°C | |
