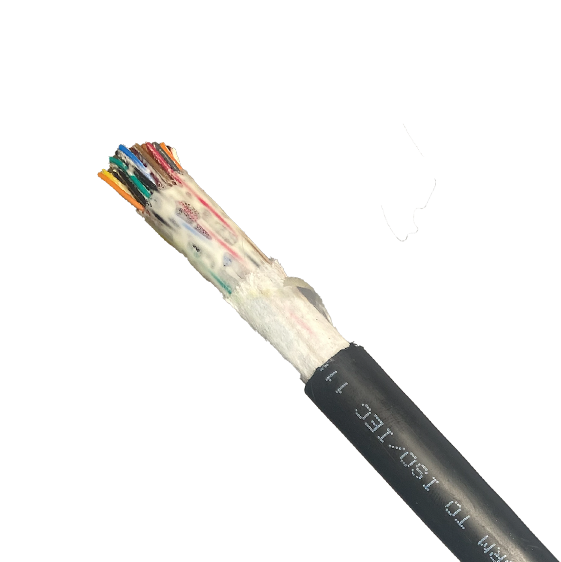

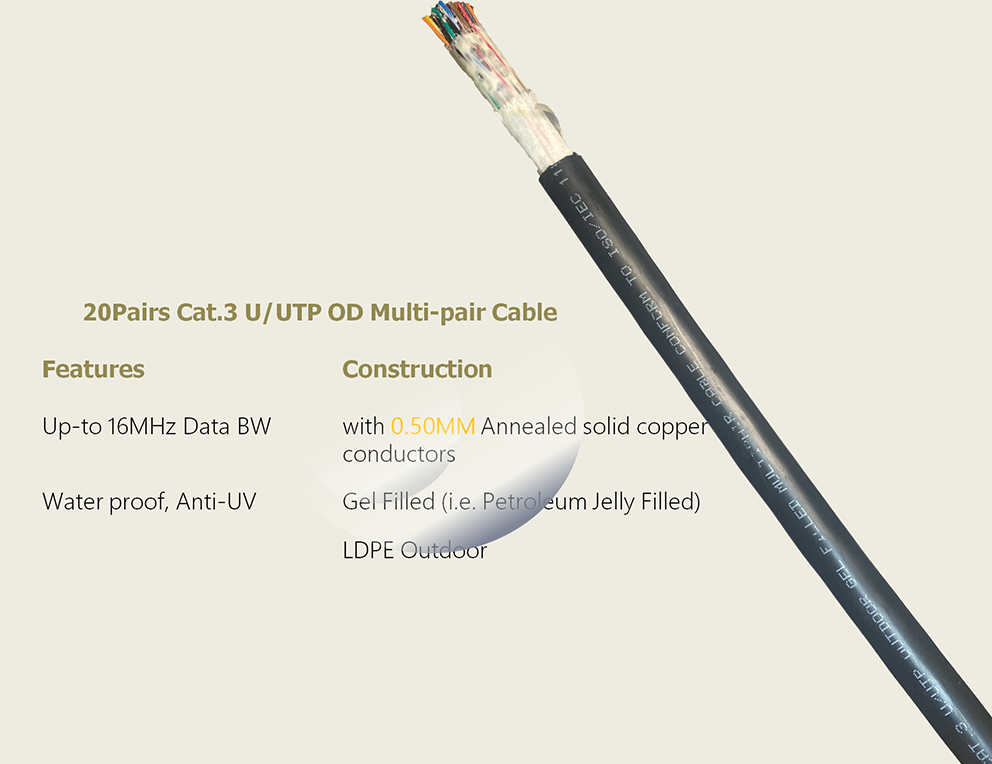

Multi-pair Cat.3 Gel Filled Outdoor Data Cables, Water-proofed, 5Pairs to 100Pairs

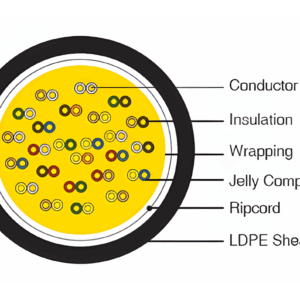

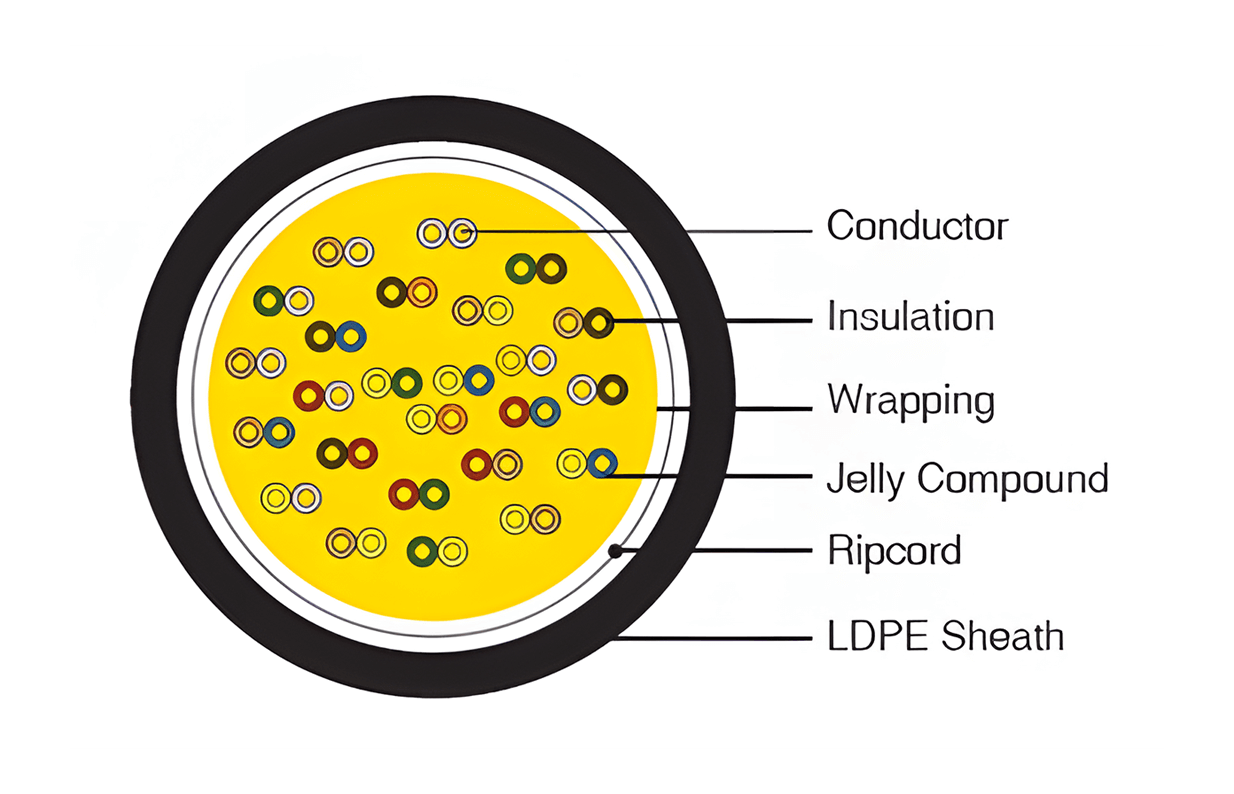

The Multi-pair Cat.3 UTP gel filled outdoor cable series meet with ANSI/TIA/EIA 568A, ISO/IEC 11801, EN 50173 specification. The cable construction – inner gel filling and black LDPE outer sheath, provides excellent water proof performance. The cables are designed to support Cat.3 Channel link performance.
Standard Compliants:
- 100 BASE-T4 protocol
- 10 Base-T protocol
- IP telephony
- TIA-568.2-D
- ISO/IEC 11801
- EN 50173
- Gel Filling & LDPE as dual water tightness barrel
- RoHS compliant
Technical Data
| Conductor | 24AWG， 0.50±0.01MM Plain copper conductor | |||||||
| Insulation Material | OD: 1.07±0.05mm, HDPE with color marking on Primary cores for easy identification | |||||||
| Insulation Color | Pair1~Pr5 | Pair6~Pr10 | Pair11~Pr15 | Pair16~Pr20 | Pair21~Pr25 | |||
| WH/BU | RD/BU | BK/BU | YL/BU | VL/BU | ||||
| WH/OR | RD/OR | BK/OR | YL/OR | VL/OR | ||||
| WH/GN | RD/GN | BK/GN | YL /GN | VL/GN | ||||
| WH/BN | RD/BN | BK/BN | YL /BN | VL/BN | ||||
| WH/GY | RD/GY | BK/GY | YL/GY | VL/GY | ||||
| Core wrapping color ribbon | See in Specification Sheet | |||||||
| Filling Compound | Petroleum Jelly Filling, water blocking | |||||||
| wrapping | polyester tape | |||||||
| Outer Sheath | LDPE | |||||||
| Outer Dia.
/thickness of sheath |
10Pairs | 20Pairs | 25Pairs | |||||
| 1.0±0.2mm | 1.1±0.4mm | 1.2±0.4mm | ||||||
| 9.4±1.0 mm | 12.0±1.0 mm | 13.0±1.0 mm | ||||||
