Us conec MTP® to MTP®, MTP® to LC Trunk, 4/8/12/24Cores, SM&OM3&OM4&OM5, up-to 100G Up-link Fiber Channel
Options

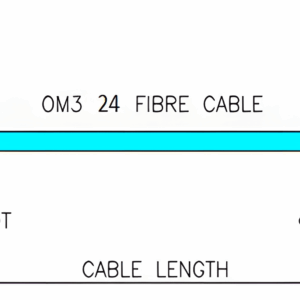

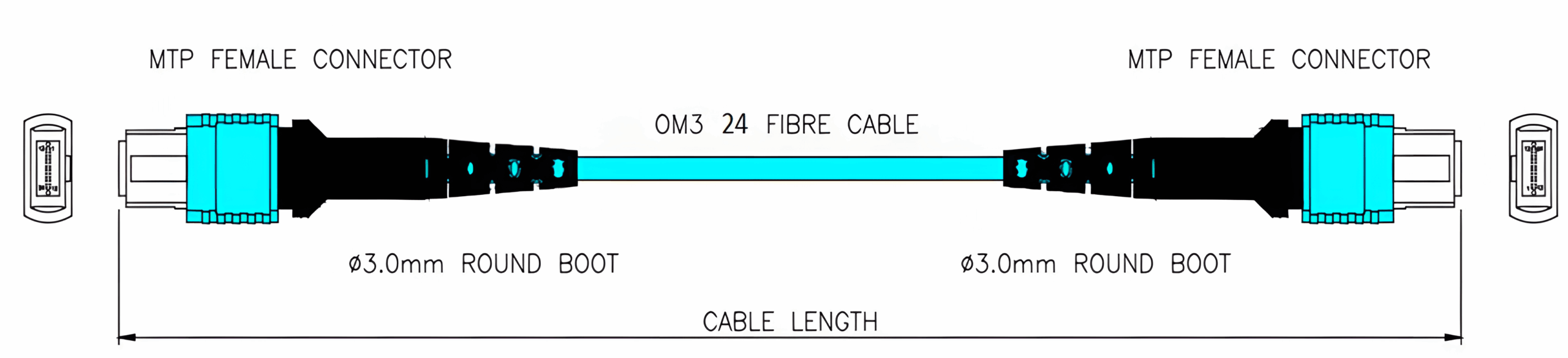

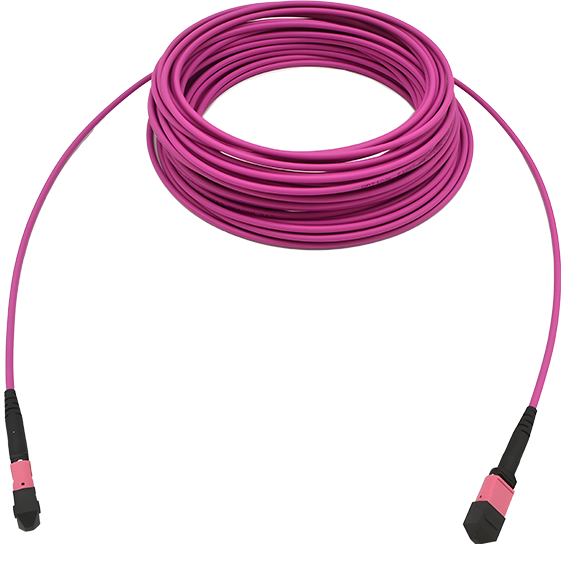

- MTP to MTP, female to Female, 8/12/24 Cores, Terminations Type “A/B/C” available

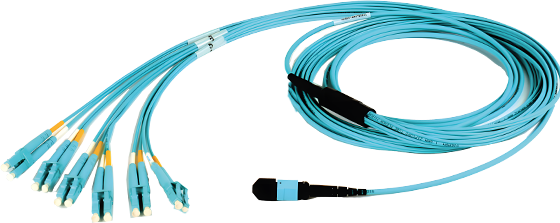

- MTP to LC Trunk, Female to Male, 4/8/12/24 Cores, Terminations Type “A/B/C” available
- Both options are available with SM, OM3, OM4, OM5 fiber mode, to fulfill high bandwidth applications.

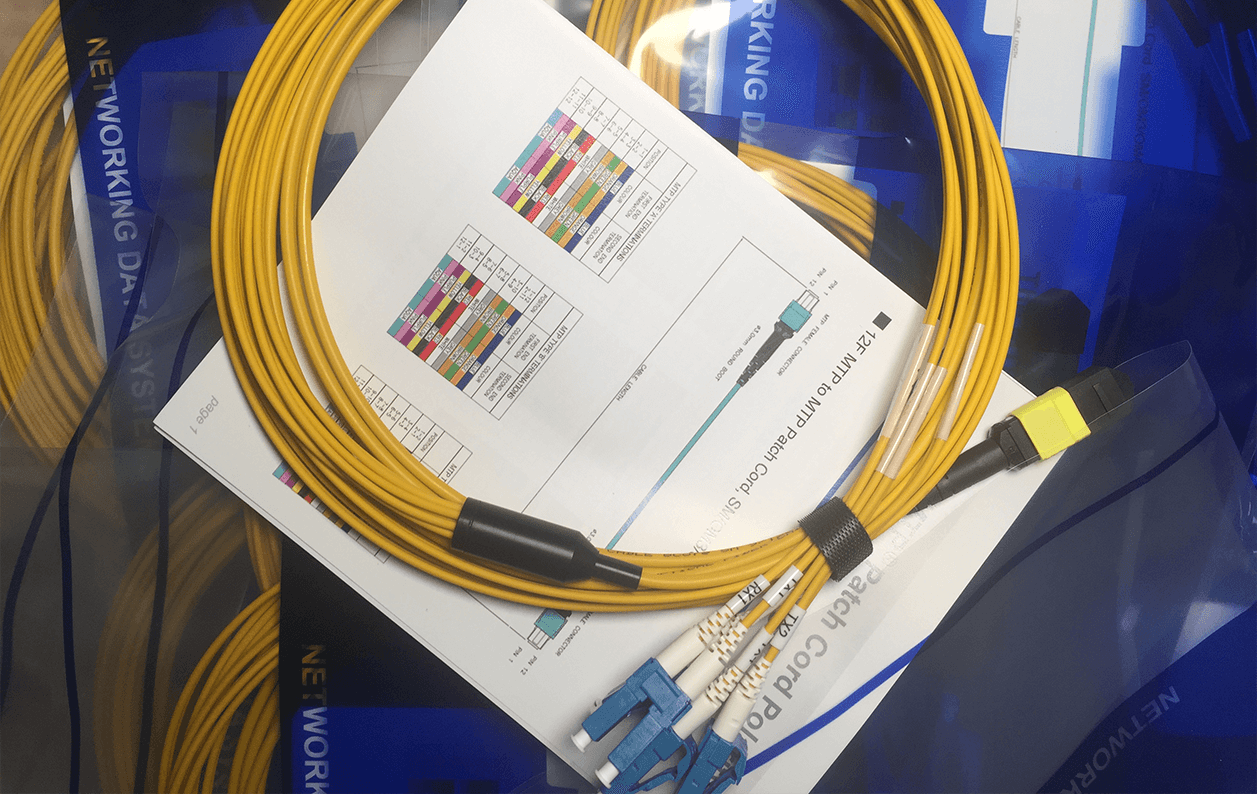

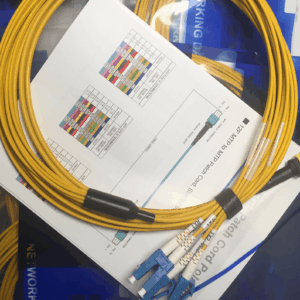

For easy visually checking, we also will attach a guidance of terminations into the package, to avoid any misunderstanding during the installation. (refer to 3rd snapshot above in this page)
Applications
4F(20G)/8F(40G)/12F(60G)/24F(100G) fiber channels
Cable Specification
| Crush Resistance(Long term) | 300N/dm |
| Bending Radius(Dynamic) | 15 x outside diameter |
| Temperature range (In use) | -20℃ to +60℃ |
| Pulling Force (Long term) | 300N |
| Outer Diameter | 3.0mm±0.1mm; |
| Available Jacket Material | PVC OFNP, LSZH-FR; Color Yellow/Aqua/Violet |
