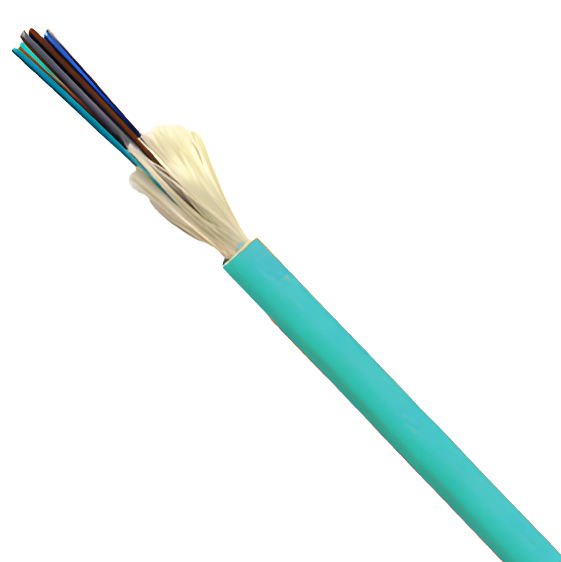

Prysmian Indoor Tight Buffer Distribution Cable, LSZH/OFNR, 2-24Cores

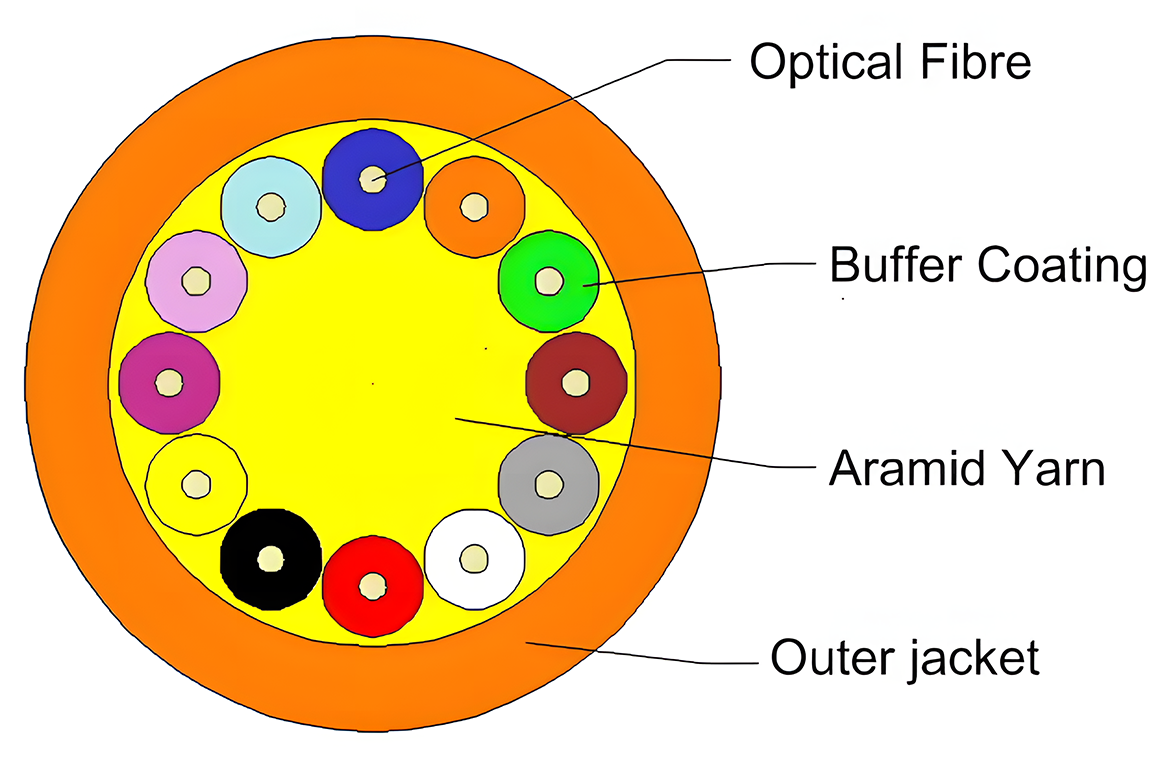

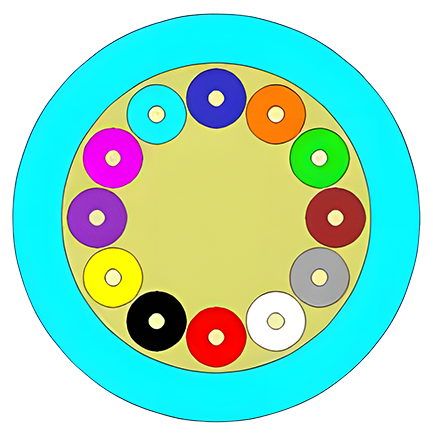

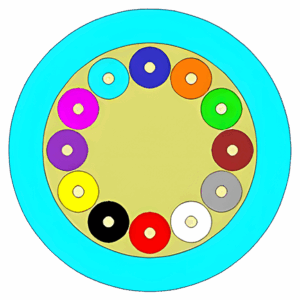

The 2-24 × 900μm tight buffer fibers are distributed in the center of the cable. The aramid yarn as strength member surround the TBF, the cable is completed with a LSOH IEC 60332-3-24 or PVC OFNR Outer Sheath.
Technical data
| No. of Fibres | 2, 4, 6 | 8 | 12 | 24 | |
| Design | 1×2/4/6 TB | 1×8 TB | 1×12 TB | 1×24 TB | |
| Tight buffer | mm | 0.9 ± 0.05 | |||
| Outer sheath thickness | mm | 0.70 ± 0.10 | 0.75 ± 0.10 | ||
| Cable Nominal Diameter | mm | 4.8 ± 0.20 | 5.4 ± 0.20 | 6.2 ± 0.20 | 8.8 ± 0.20 |
| Max installation tension | N | 660 | |||
| Max operation tension | N | 198 | |||
| Min. bending radius | mm | Without Tension 10 × Cable-Ø |
Under Maximum Tension 20 × Cable-Ø |
||
| Temperature range | °C | Installation -10 -> +60; |
Transport. & Storage -40 -> +70 ; |
Operation -20 -> +70 |
|
| Flame Retardant | PVC: OFNR LSZH: IEC 60332-1, IEC60332-3-24 |
||||
