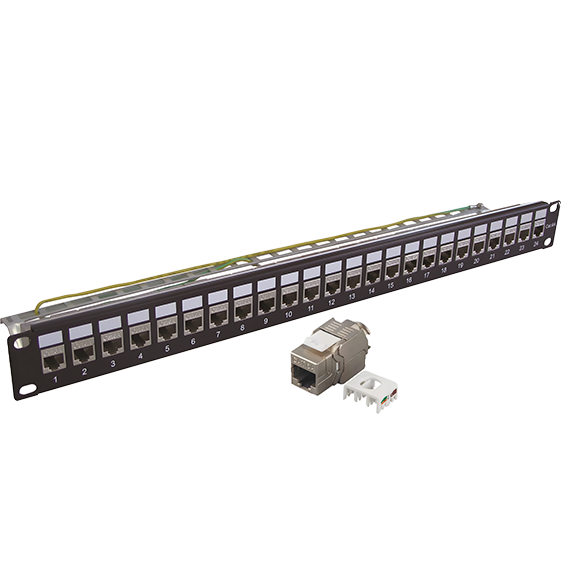

SSTP ClassEa Series, Cat.6A 24Ports Modular Patch Panel, 19Inch, Height 1U
Application
19” 1U Class EA/Cat.6A shielded patch panel supports 10G Ethernet, dedicated for 10G copper cable termination and cross-connection in 19” rack.
Technical Data
1) 24Port Chassis
| Size | Height × Width × Depth (mm) | 44.3 × 482.6 × 151, 1U 19” |
| Chassis Material / thickness | SPCC, powder coating / 1.5mm | |
| Color | RAL9004 (black) | |
| Rear cable Management bar | Silver Color | |
| Earthing kit (fixed on rear bar) | 1.0mm2 Grounding wire, 0.5m | |
| Operating Temp. | -20°C to +70°C | |

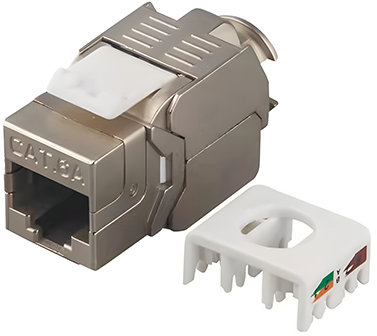

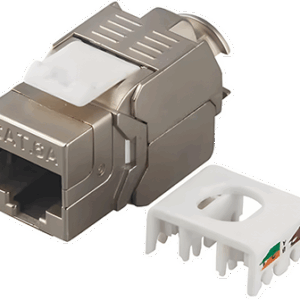

2)SSTP ClassEa Series, Cat.6A SSTP RJ45 Keystone Jack, Tooless Design
| IDC | Contacts | Nickel plated over phosphor bronze |
| Admissible Solid Wire | 0.4 mm (AWG26) – 0.65 mm (AWG22) | |
| Re-terminations | Min. 250s | |
| Jack | Contacts | 3u/30u/50u Gold plated |
| Admissible Plugs | RJ45 Shielded Fast Plug | |
| Mating Cycles | Min. 750s |

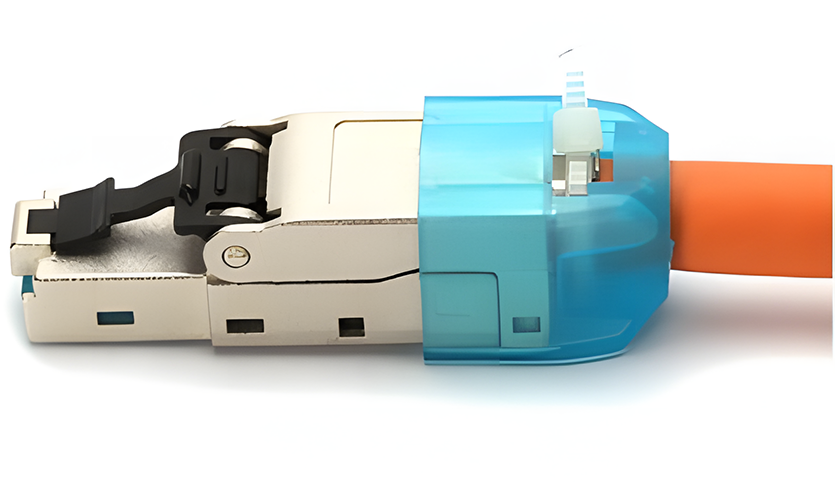

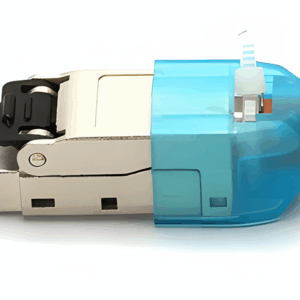

3)SSTP ClassEa Series, Cat.6A SSTP RJ45 Fast Plug, Tooless Design
| Housing/Main Body Metal | zinc die-casting, nickel-plated |
| Tooless IDC Contact | Phosphor Bronze With nickel-plated |
| Plastic Parts | PC, UL 94-V2 |
| RJ45 Contacts | Phosphor Bronze with Gold plated, 6u |
| Operating Temp. | -40°C to +70°C |
For specification sheet and further info., please contact with us.
