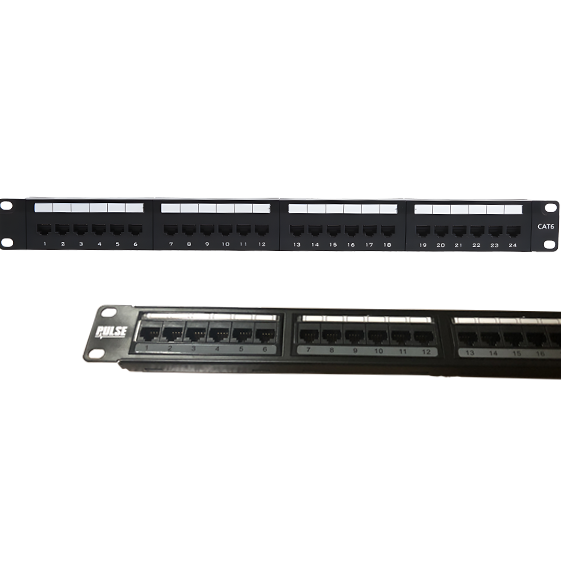

UTP ClassE Series, Cat.6 24Ports Unshielded Patch Panel, 19Inch, Height 1U
Features
- ISO/IEC 11801:2010 & EN 50173 Class E, ANSI/TIA 568.2-D Cat.6 performances compliant
- 1800 punching Dual type IDC, terminate with 110 or krone tools
- Rear cable management bar included
- RoHS compliant
Technical Data
| Size | Height | 1U, 44.4mm ; 2U 88.8mm | |
| Width | 482.6mm | ||
| Depth | 95mm | ||
| Chassis Material | SPCC, powder coating | ||
| Thickness | 1.5mm | ||
| Color | RAL9004 (black) | ||
| Operating Temp. | -10°C to +60°C | ||
| Weight | 1U | N.W 0.73Kgs ; G.W 0.78Kgs | |
| 2U | N.W 1.37Kgs ; G.W 1.42Kgs | ||
| Packing | 1U | 515mm W x 55mm H X 115mm D | |
| 2U | 515mm W x 60mm H X 140mm D | ||
For Specification sheet and further info., please contact with us.
