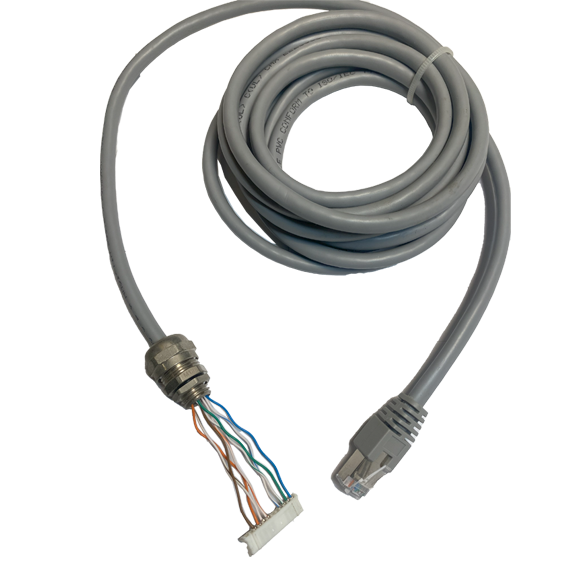

Industrial Cat.5e SFTP Jumper Cord, RJ45 to JST Connector, 8pins is a custom-built cord for industrial field long term operation, such as a jump cord of device to device, jumper cord to control system and etc.
Below cable construction and wiring map for reference, other options of configuration please contact with us for detail.

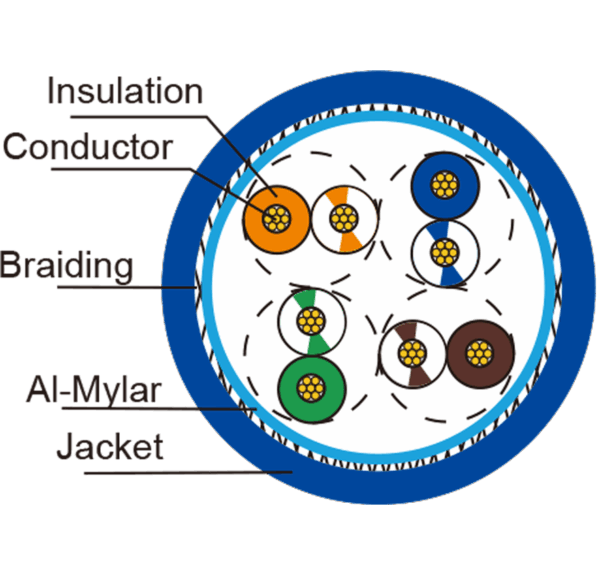

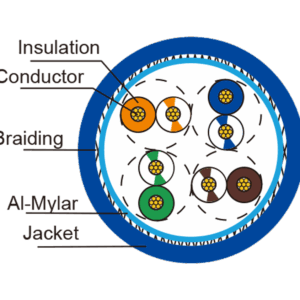

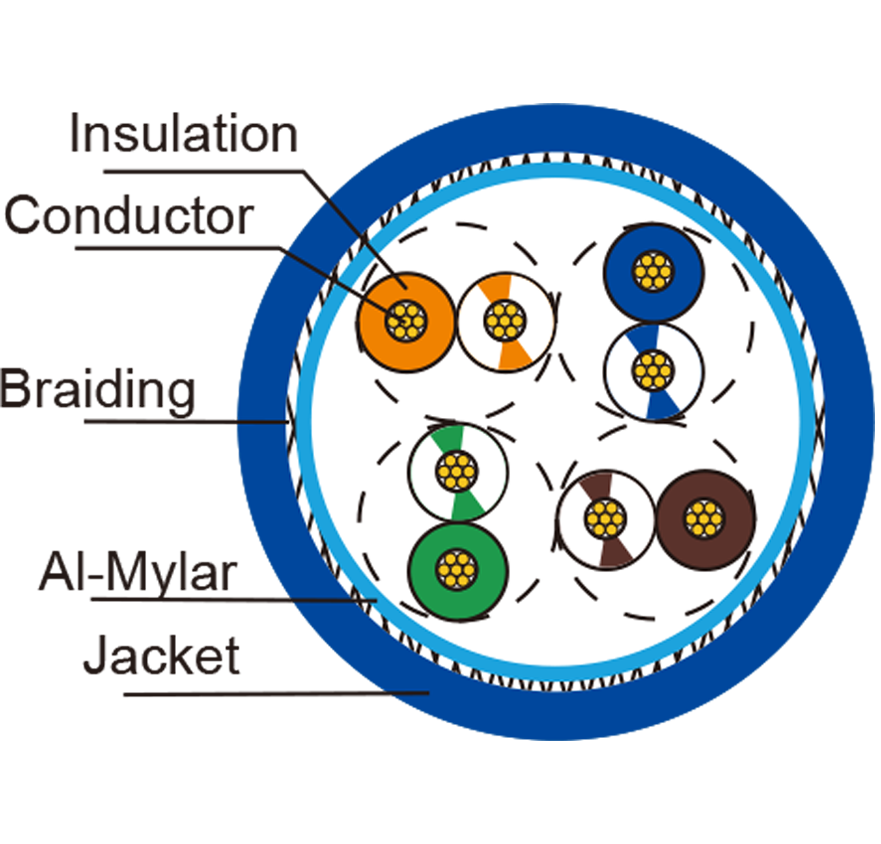

Cable Construction:
Conductor: Bare Copper, 26 AWG (7/0.16mm)
Insulation: FPE
Shielding: Aluminum-mylar tape, mylar face to inside core
Grounding: 26AWG Bare copper
Screening: Tinned copper braiding
Jacket: PVC, Grey, thickness 1.0mm nom.
Finish Cable O.D 6.1 ± 0.5mm
| Cable Wiring Map | ||
| Pin# | RJ45 FTP Plug | JST Side |
| Pin1 | Orange/White | Can Low |
| Pin2 | Orange | Can High |
| Pin3 | Green/White | 0V / GND |
| Pin4 | Blue | +24V DC |
| Pin5 | Blue/White | 0V / GND |
| Pin6 | Green | +24V DC |
| Pin7 | Brown/White | Can Low |
| Pin8 | Brown | Can High |
