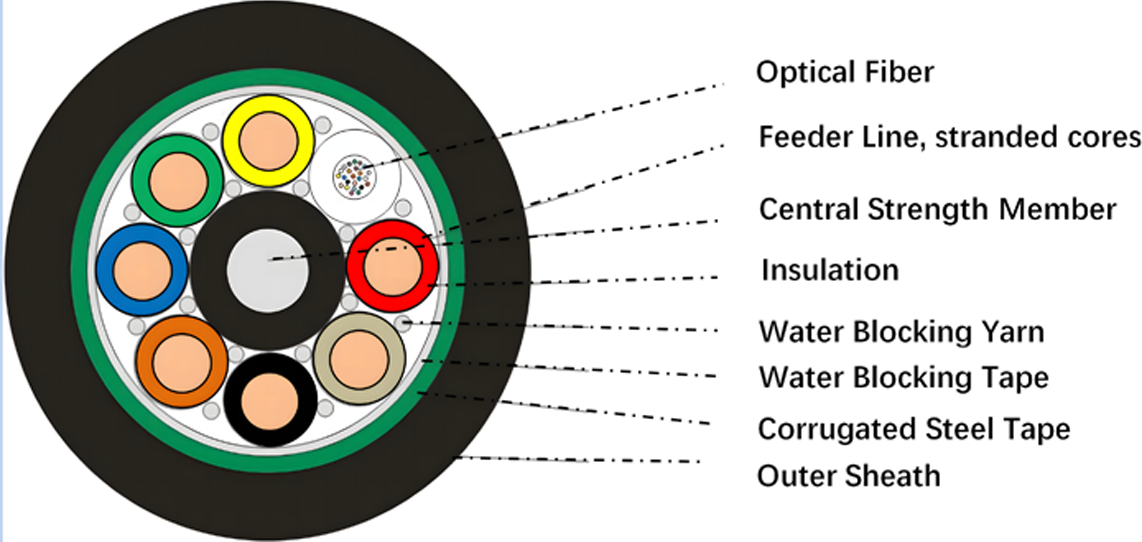

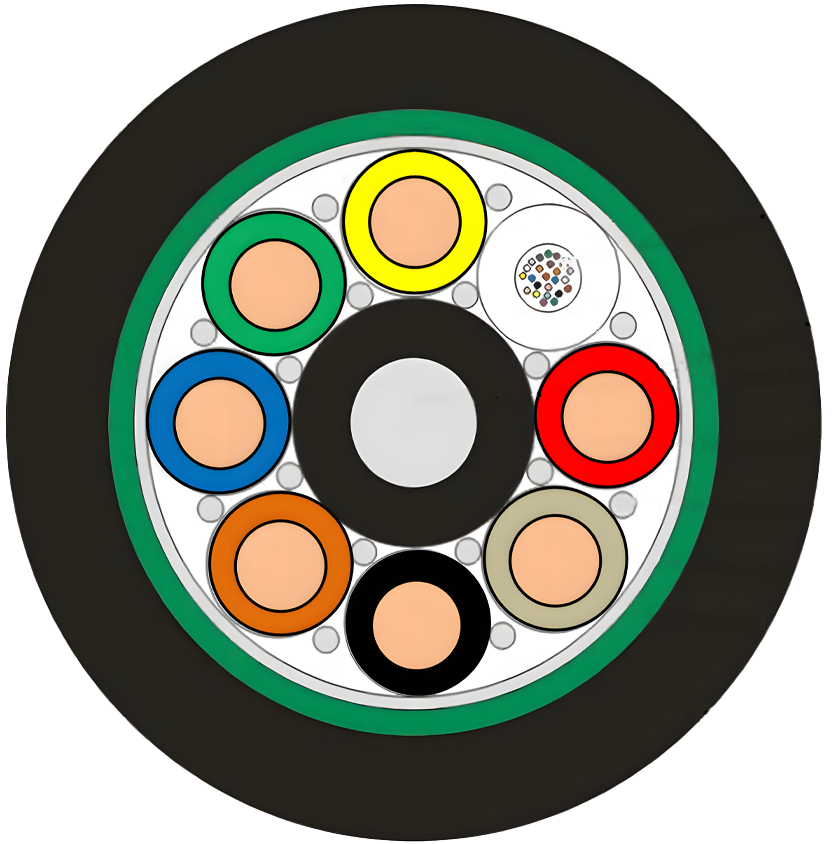

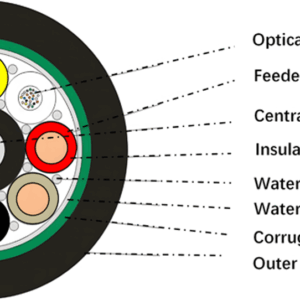

Hybrid Cable – Outdoor Armored 7×5.3 sqmm BC + 24Cores G652D SMF

1)   Electrical Units

Conductors: per IEC 60228

Insulation: per IEC 60227

         For insulated wire(s)

2)   Optical Fiber Unit

Fibers: per ITU-T G652D & IEC B1.3

Loose Tube:

Water Tightness Filling

3)   Peripherals

Central Strength Member:

Water tightness:

Cable Armor:

4)   Sheath Material

Outer Sheath

Cable Weight

7× Annealed Copper Conductors

Conductor Size: 10AWG, 75/0.3mm wires stranded

PVC, nominal O.D 5.0mm

Nom. Thickness：0.60mm, min. > 0.44mm

Color Code: Yellow (C1), Green (C2), Blue (C3),     Brown (C4), Black (C5), Grey (C6), Red (C7)

24×Single Mode 9/125um, color code refers to specification sheet

PBT, natural color, O.D 5.6mm

Yes

Steel wire with coating, O.D 6.0mm (with padding)

16 strands×Water blocking yarn & overall water blocking tape (>10% overlapped)

Corrugated steel tape (>10% overlapped)

PE, black

Nom. Thickness：2.20± 0.1 mm,

Cable dia. 24.3 ± 0.2(mm)

Approx. 900kg/km
