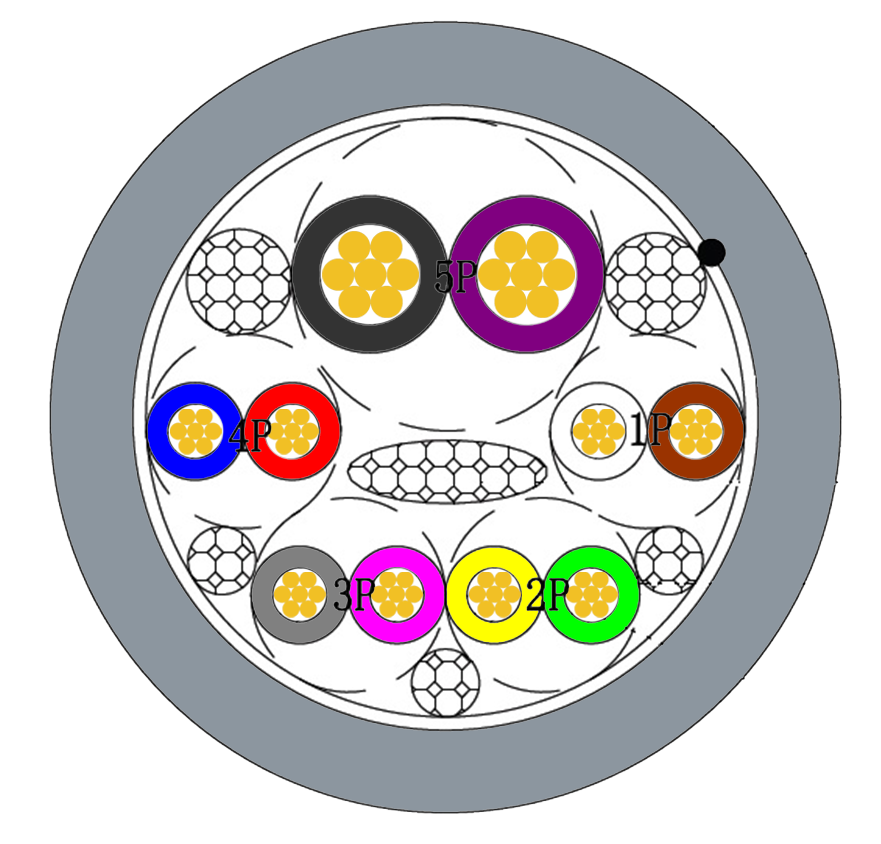

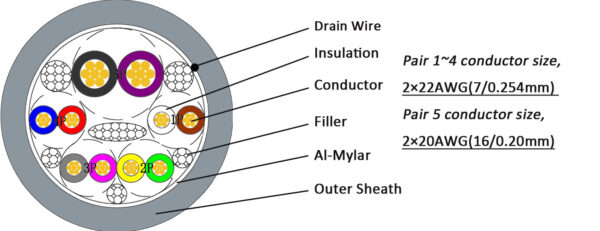

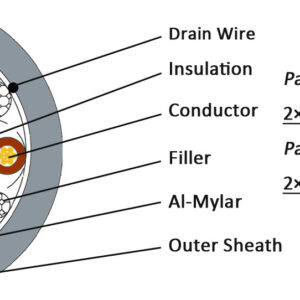

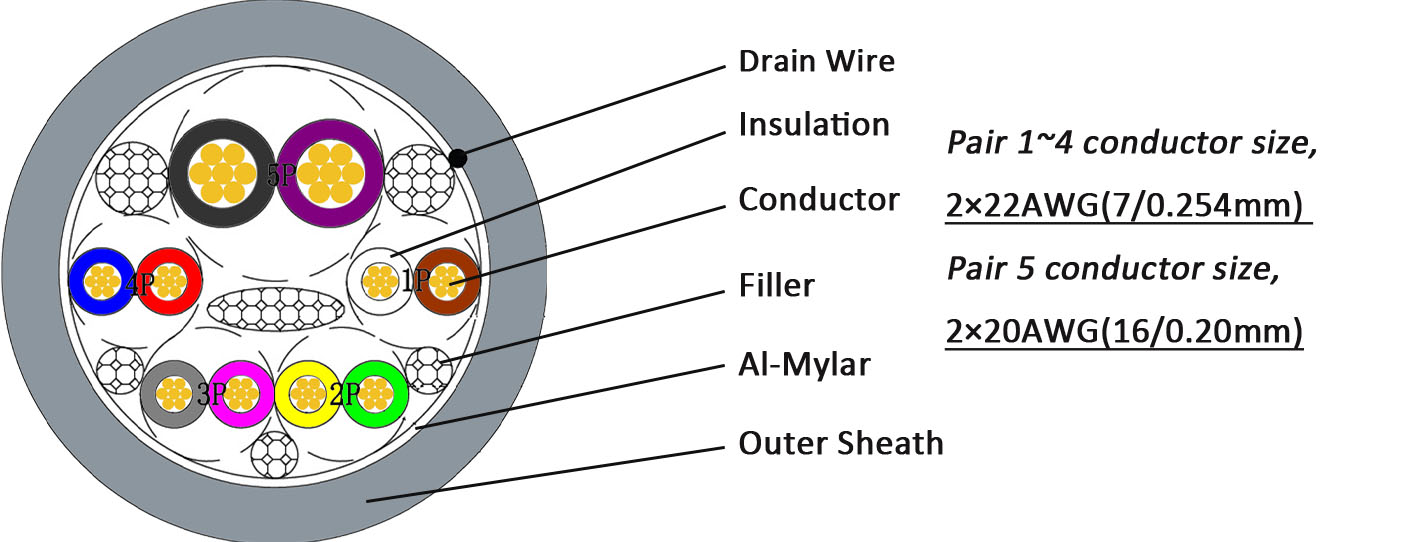

80℃ 300V 5Pairs (1Pair×20AWG + 4Pairs×22AWG) Screened Control Cable, LSZH VW-1

Conductors: per ASTM B 33

Insulation: per UL 1061

Drain Wire:

Fillers:

Shielding:

Sheath Material:

Rated Temperature 80°C

Rated Voltage 300V

Annealed Tinned copper, Stranded multi-cores

Pair 1-4: 2×22AWG(7/0.254mm)

Pair 5: 2×20AWG(16/0.20mm)

Semi-rigid PVC (SR-PVC)

Pair1-4: Nom. Thickness /O.D 0.25mm/1.30±0.10 (mm)

Pair 5: Nom. Thickness /O.D 0.27mm/1.50±0.10 (mm)

Color Code: White/Brown (P1), Green/Yellow (P2), Grey/Pink (P3), Blue/Red (P4), Black/Purple (P5).

Tinned Copper, 22AWG(7/0.254mm)

Cotton Fillers

Al-Mylar foil, coverage 100%

LSZH, Flame Retardant, RAL7001

Nom. Thickness 1.0(mm)

Cable dia. 9.0 ± 0.3(mm)
